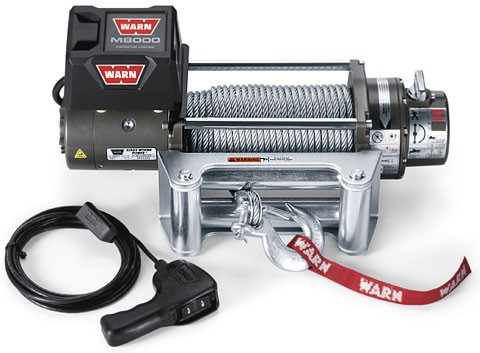

| M8000 SPECS/PART NUMBERS |
| Rated Line Pull: 8,000 lbs. (3630 kgs) single-line |
| Intended Use: Vehicle Recovery / For Trucks and SUVs |
| Motor: 12V 4.8 hp |
Duty Cycle Rating:  |
| Remote Control: Remote, 12' (3.7m) lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 216:1 |
| Lubrication: Aeroshell #17 |
| Clutch (freespooling): Sliding Ring Gear |
| Brake: Automatic Direct Drive Cone |
| Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm) |
| Weight: 74 lbs. (34 kgs.) |
| Wire Rope: 80', 5/16" diam. (24m, 8mm diam.) or 100', 5/16" diam. (30m, 8mm diam.) |
| Fairlead for PN 20910: Hawse |
| Fairlead for PN 26502, 265022, 265032: Roller |
| Recommended Battery: 650 CCA minimum for winching |
| Battery Leads: 2 gauge, 72" (1.83m) |
| Finish: Argent Gray Powder Coat |
| Nuts/Bolts: PN 39625 |
