Details

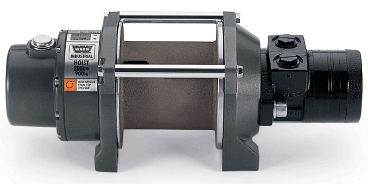

The HY2000 hoist combines a powerful and efficient hydraulic motor with robust sealing and our proven 2-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The HY2000 hoist is built on a compact midsize frame with integrated tie bars that's easy to install.
| HY2000 SPECS/PART NUMBERS |
| Part Number: 68032 |
| Rated Capacity: 2000 lbf (907kgf) |
| Drum Barrel Diameter: 4.25 in (108 mm) |
| Drum Flange Diameter: 6.25 in (159 mm) |
| Distance Between Flanges: 4.5 in (114 mm) |
| Recommended Maximum Wire Rope Diameter: 1/4 in (6.4 mm) |
| Recommended Wire Rope Breaking Strength: 7000 lbf (3175 kgf) |
| Approximate Shipping Weight: 40 lbs. (18.1 kg) |
| Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m) |
| Mounting Bolt Torque: 32 - 34 ft*lbf (43 - 46 N*m) |
| Maximum Layers of Wire Rope: 2 |
| Gear Reduction: 26:1 |
| Brake Type: Automatic Cone |
| Standards Compliance: CE Machinery Directive 98/37/EC and 2006/42/EC ASME B30.5 |
| ACCESSORIES |
| Wire Rope Assy-1/4" x 60ft: PN 71297 |
| Wire Rope Assy-1/4" x 50ft: PN 24891 |
| Wire Rope Assy-1/4" x 40ft: PN 24890 |
| Wire Rope Assy-1/4" x 25ft: PN 24889 |
| PERFORMANCE BY LAYER | |||||||
| Drum Layer | Line Load * | Line Speed at 10 GPM | Drum Capacity | ||||
| lbf | kgf | kN | ft/min | m/min | ft | m | |
| 1 | 2000 | 907 | 8.9 | 46.0 | 14.0 | 20 | 6.1 |
| 2 | 1800 | 816 | 8.0 | 52.0 | 15.8 | 43 | 13.1 |
| * Never exceed the Rated Capacity. Installation of a Rated Capacity Limiter is recommended. | |||||||
| FIRST LAYER PERFORMANCE | ||||||
| Line Load | Pressure Drop at 5 GPM |
Pressure Drop at 10 GPM |
Duty Cycle | |||
| lbf | kgf | psi | BAR | psi | BAR | min/10min |
| 0 | 0 | 85 | 5.9 | 400 | 27.6 | Continuous |
| 500 | 227 | 275 | 19.0 | 500 | 34.5 | Continuous |
| 1000 | 454 | 495 | 34.1 | 691 | 47.6 | 6.0 |
| 1500 | 680 | 710 | 49.0 | 878 | 60.5 | 3.0 |
| 2000 | 907 | 900 | 62.1 | 1065 | 73.4 | 2.2 |
| WARN Industrial hoists combine the performance of heavy duty motors with hardened steel planetary gear trains to provide optimum power in lifting operations. |
Additional Information
| SKU | HYD2000MF-68032 |
|---|---|
| Manufacturer | Warn |
| Item Height | N/A |
| Item Width | N/A |
| Item Length | N/A |
| Item Weight | N/A |
