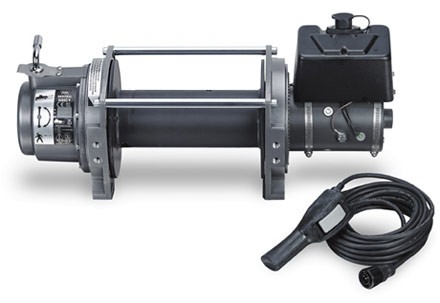

Warn Series 9 DC electric winch 9000lb / 4082kg

Warn Series 9 DC electric winch 9000lb / 4082kg

Email to a Friend

Be the first to review this product

$4,911.00

Quick Overview

Industrial Grade Winch Pulls up to 9,000lb / 4082kg

Note: If there are no shipping options available for your address, please contact us.

Warn Series 9 DC electric winch 9000lb / 4082kg

Double click on above image to view full picture

More Views

*Voltage

12 Volt
24 Volt

* Required Fields

$4,911.00

Qty:

Details

Dependable high-torque series-wound electric motor, available in 12 or 24V configurations
SAE J706-compliant disc brake designed for extended power-out use
Rugged 32' / 10 m industrial remote control
Higher gear ratio for fastest line speed
Weatherproof industrial contactor control pack
Thermal protection device protects motor from overheating
Wire rope, roller fairlead, and tensioner sold separately

9 DC SPECS/PART NUMBERS

Part Number: 30283 12V

Part Number: 30284 24V

Rated Pulling Force: 9000 lbs (4082kg)

Drum Barrel Diameter: 4.0" (102mm)

Drum Flange Diameter: 8.24 in (209mm)

Distance Between Flanges: 9.95" (253mm)

Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)

Recommended Minimum Wire Rope Breaking Strength: 15,100 lbf (6849 kgf)

Approximate Shipping Weight: 95.0 lbs (43.1 kg)

Duty Cycle (intermittent per SAE J706 section 6.2): 75 ft (22.9 m)

Mounting Bolt Torque: 35 - 40 ft*lbf (47 - 54 N*m)

Maximum Layers of Wire Rope: 4 (with 3/8" rope)

Gear Reduction: 199:1

Brake Type: Disk

Contactor / Remote Type: Industrial contactor with 33' (10m) heavy duty remote

Standard Compliance:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC

Accessories

Wire Rope Tension Plate 10'': PN 31149

Fairlead Black 10'': PN 24336

Fairlead Chrome 10'': PN 30859

Remote Clutch Mechanical: PN 38316

Remote Clutch Air: PN 71370

Wire Rope Assembly 3/8''x125' EIPS: PN 23674

12V PERFORMANCE DATA BY LAYER - 3/8" (9.5 mm) dia. rope
Drum Layer	Line Load *			No Load Line Speed		Drum Capacity
	lbf	kgf	kN	ft/min	m/min	ft	m
1	9000	4082	40.0	26.0	7.9	25	7.6
2	7518	3410	33.4	31.1	9.5	54	16.5
3	6455	2928	28.7	36.3	11.1	88	26.8
4	5655	2565	25.2	41.4	12.6	126	38.4
* Never exceed the Rated Pulling Force. Installation of a Rated Capacity Limiter is recommended.

12V FIRST LAYER PERFORMANCE
Line Load		Current Draw	Line Speed		Duty Cycle
lbf	kgf	Amps	ft/min	m/min	min/10min
0	0	101.0	26.0	7.9	4.1
1500	680	169.1	17.2	5.2	2.1
3000	1361	233.0	12.8	3.9	1.4
4500	2041	296.9	9.5	2.9	1.1
6000	2722	362.9	5.5	1.7	0.9
7500	3402	424.7	5.2	1.6	0.7
9000	4082	486.0	2.9	0.9	0.6

24V PERFORMANCE DATA BY LAYER - 3/8" (9.5 mm) dia. rope
Drum Layer	Line Load *			No Load Line Speed		Drum Capacity
	lbf	kgf	kN	ft/min	m/min	ft	m
1	9000	4082	40.0	31.3	9.5	25	7.6
2	7518	3410	33.4	37.4	11.4	54	16.5
3	6455	2928	28.7	43.6	13.3	88	26.8
4	5655	2565	25.2	49.8	15.2	126	38.4
* Never exceed the Rated Pulling Force. Installation of a Rated Capacity Limiter is recommended.

24V FIRST LAYER PERFORMANCE
Line Load		Current Draw	Line Speed		Duty Cycle
lbf	kgf	Amps	ft/min	m/min	min/10min
0	0	54.5	31.3	9.5	4.8
1500	680	91.9	19.7	6.0	2.4
3000	1361	120.2	15.3	4.7	1.7
4500	2041	150.4	12.6	3.8	1.3
6000	2722	185.5	10.4	3.2	1.0
7500	3402	215.9	8.9	2.7	0.9
9000	4082	237.9	8.1	2.5	0.8

Additional Information

SKU	W9000-30283
Manufacturer	Warn
Item Height	No
Item Width	No
Item Length	No
Item Weight	No
